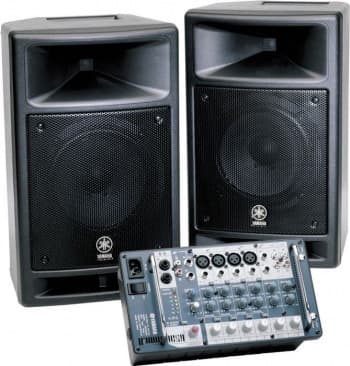

Yamaha STAGEPAS 300 Portable PA System

Yamaha STAGEPAS 300 Portable PA System

Maksimalna izlazna snaga - 150 W+150 W/6Ω @ 10% THD at 1kHz (SPEAKER L/R), 100 W+100 W/6Ω @ 1% THD at 1kHz (SPEAKER L/R)

Frequency Response -3 dB, 0 dB, +1 dB @20 Hz.20 kHz, 1 W Output/6Ω, (Without MUSIC/SPEECH, EQ and SP EQ Circuit) (SPEAKER L/R), -3 dB, 0 dB, +1 dB @20 Hz.20 kHz, +4 dBu 10 kΩ Load [MUSIC/SPEECH] switch=MUSIC (MONITOR OUT, REC OUT)

Total Harmonic Distortion <1% @1 kHz, 50 W Output Power (SPEAKER L/R), <0.5% @20 Hz.20 kHz, +14 dBu 10 kΩ (MONITOR OUT, REC OUT)

Šum i buka - <-65 dBu Residual output noise (SPEAKER L/R), <-90 dBu Residual output noise (MONITOR OUT, REC OUT), <-67 dBu @ MONITOR OUT control & one CH LEVEL control at nominal level

Crosstalk - <-70 dB between input channels

Potrošnja - 70 W

Zvučnici - Enclosure Bass-reflex type, Speaker Unit LF: 8" (20 cm) Cone, HF: 1" (2.54 cm) Compression Driver, Cross Over Frequency 4 kHz, Frequency Range 55 Hz - 20 kHz, Maximum Output Level 112 dB (1 m)

Portable PA system

2 speakers with powered mixer

2-way bass reflex speakers

6/8-channel powered mixer

4 mono channels

2 stereo channels

4 XLR inputs (ch 1-4)

Stereo RCA inputs

Stereo line inputs

Class D power amp (150W + 150W)

24-bit digital reverb
